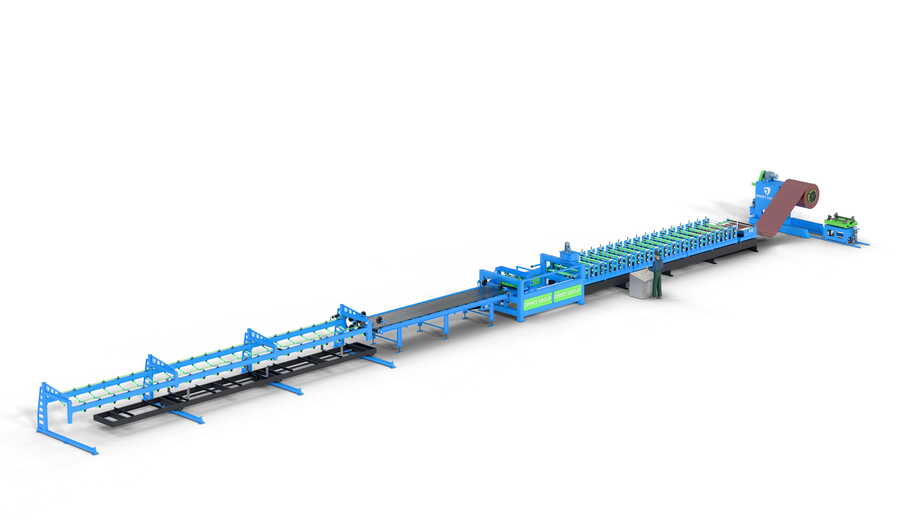

Trapezoidal Sheet Metal Production Line

The Trapezoidal / Corrugated Sheet Metal Production Line refers to the machinery and equipment system that produces trapezoidal and corrugated metal sheets widely used in the construction and roofing industries. The primary goal of this production line is to ensure the sheets are of high quality, durable, and long-lasting. Both trapezoidal and corrugated sheets are produced on the same production line, with the only difference being the shaping and processing of the metal sheets.

Trapezoidal sheets are created by shaping metal sheets into a trapezoidal profile, while corrugated sheets have a wavy pattern formed as the metal sheet passes through the machine. These materials are commonly used in garages, roofing, warehouses, and industrial sectors. Corrugated sheets are durable and lightweight products that facilitate easy water drainage. The production line consists of several sub-processes. The company designs the machine according to the requested sheet size and thickness from the customer and provides full support from production to assembly.

NOTE: Our R&D team designs requested custom models according to customer demands and presents them to clients.

What is a Trapezoidal Sheet Machine (Sheet Metal Production Line)?

A Trapezoidal Sheet Machine is a production line that transforms metal sheets into specific shapes. Trapezoidal sheets are widely used in construction and roofing due to their durability and aesthetic appearance. These machines automatically perform shaping, cutting, and production of sheets in various sizes.

Features of the Trapezoidal Sheet Production Line

• Material Thickness: Capable of processing metal sheets ranging from 0.3 mm to 0.8 mm thickness.


• Material Width: Can handle sheets with widths of 1000 mm or 1250 mm.


• Production Speed: Produces between 10 to 15 meters per minute.


• Forming Stations: Equipped with 12 to 24 roll forming stations.


• Control System: Features an advanced PLC control system allowing easy management of the production process.


• Cutting Unit: Includes hydraulic or servo motor-driven cutting units for precise cutting.


• Decorative and Protective Coatings: Trapezoidal sheets can be coated with corrosion-resistant and aesthetically pleasing finishes.



Pricing of Trapezoidal Sheet Machines

Prices vary depending on machine features, capacity, and manufacturer. Generally, machines with lower capacity and fewer features are more affordable, while high-capacity, advanced technology machines are priced higher. Prices typically range from $50,000 USD to $200,000 USD.

Delivery Process of Trapezoidal / Corrugated Sheet Metal Production Lines

The delivery timeline depends on the manufacturer and the specifications of the ordered machine. Typically, the production and delivery of a standard machine take 8 to 12 weeks. Customized or special-order machines may require longer. The delivery process includes production, assembly, testing, and shipping to the customer.

Maintenance of Trapezoidal Sheet Machines

To ensure efficient and long-lasting operation, regular maintenance is essential, including:

• Daily Inspections: Check all moving parts and connections before and after daily operation.


• Cleaning: Regular cleaning to remove dust and metal debris.


• Lubrication: Periodic lubrication of all moving parts using appropriate lubricants.


• Part Replacement: Immediate replacement of worn or damaged parts.


• Electrical and Hydraulic System Checks: Routine checks to prevent breakdowns.



Energy Consumption of Trapezoidal Sheet Machines

Energy consumption varies based on machine capacity, motor power, and production speed. Generally, high-capacity, fast-production machines consume more energy. On average, energy use ranges between 15 to 30 kWh per hour. To minimize consumption, machines are equipped with efficient motors and energy-saving systems.
